Reporting Example

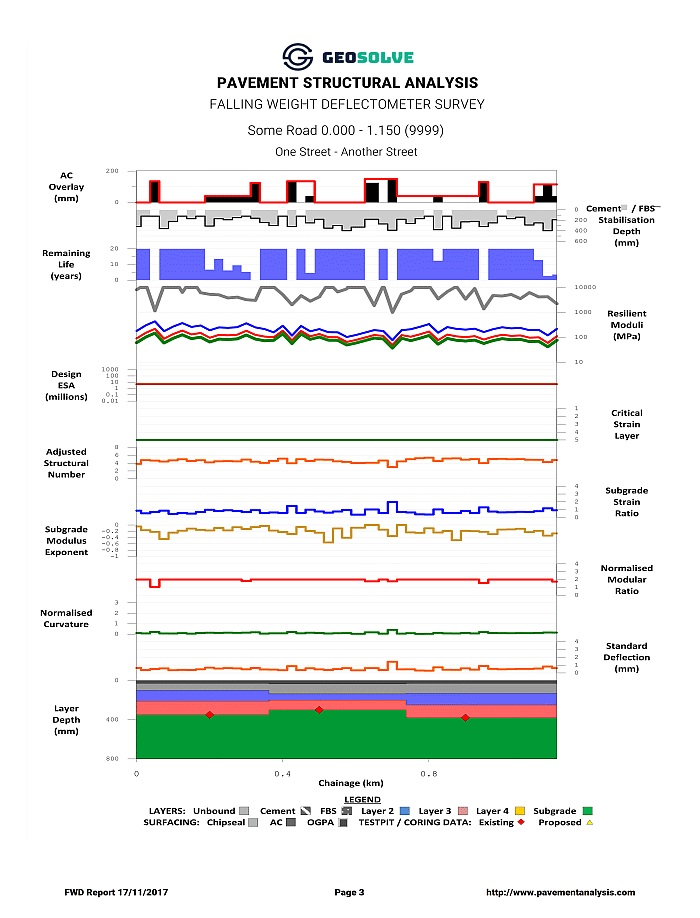

For unbound granular pavements, standard presentation for hardcopy is a set of graphs showing all parameters plotted against stationing from the defined origin, as shown below.

An example of a basic Client Report can be downloaded here.

Reporting Variables

FWD Example Report.gif

The successive graphs (commencing from the lowermost) display:

- Pavement structure (layer thicknesses of basecourse, subbase etc) used in the model.

- Dynamic central deflection (similar to Benkleman Beam deflection, standardised for temperature, time of loading and standard dual wheel load for 1 ESA).

- Subgrade strain ratio, i.e. the strain at the top of the subgrade divided by the allowable strain for the material under the proposed traffic.

- Normalised curvature (Do-D200, relative to expected values for the specified traffic, ie value less than 1 indicate premature distress is likely

- Normalised modular ratio, values less than 1 substandard compaction if the layer thicknesses in the model are correct (same as as-built) - a very useful parameter for construction quality control

- Subgrade modulus exponent which allows identification of likely soil type in the subgrade and its susceptibility to moisture. Low values sometimes suggest that subsurface drainage may need improvement if practicable.

- Subgrade strain ratio. the vertical strain at the top of the subgrade divided by the allowable vertical strain, ie values much less than one indicate underdesign whereas values over 1 indicate possible premature distress

- Adjusted Structural Number (SNP)

- Critical layer (where strain governs first, although other layers may be marginal also)

- Design ESA/lane (equivalent number of standard 8.2 tonne axles over the design life)

- Subgrade resilient modulus (continuous green line) and equivalent CBR

- Resilient moduli of pavement layers

- Remaining life (in years) using either a strain model or HDM deterioration model

- Required depth of cement stabilisation (if relevant)

- Required overlay

The vertical sequence and corresponding colour coding are intended to allow rapid assimilation of the structural model and the logic of its conclusions.
